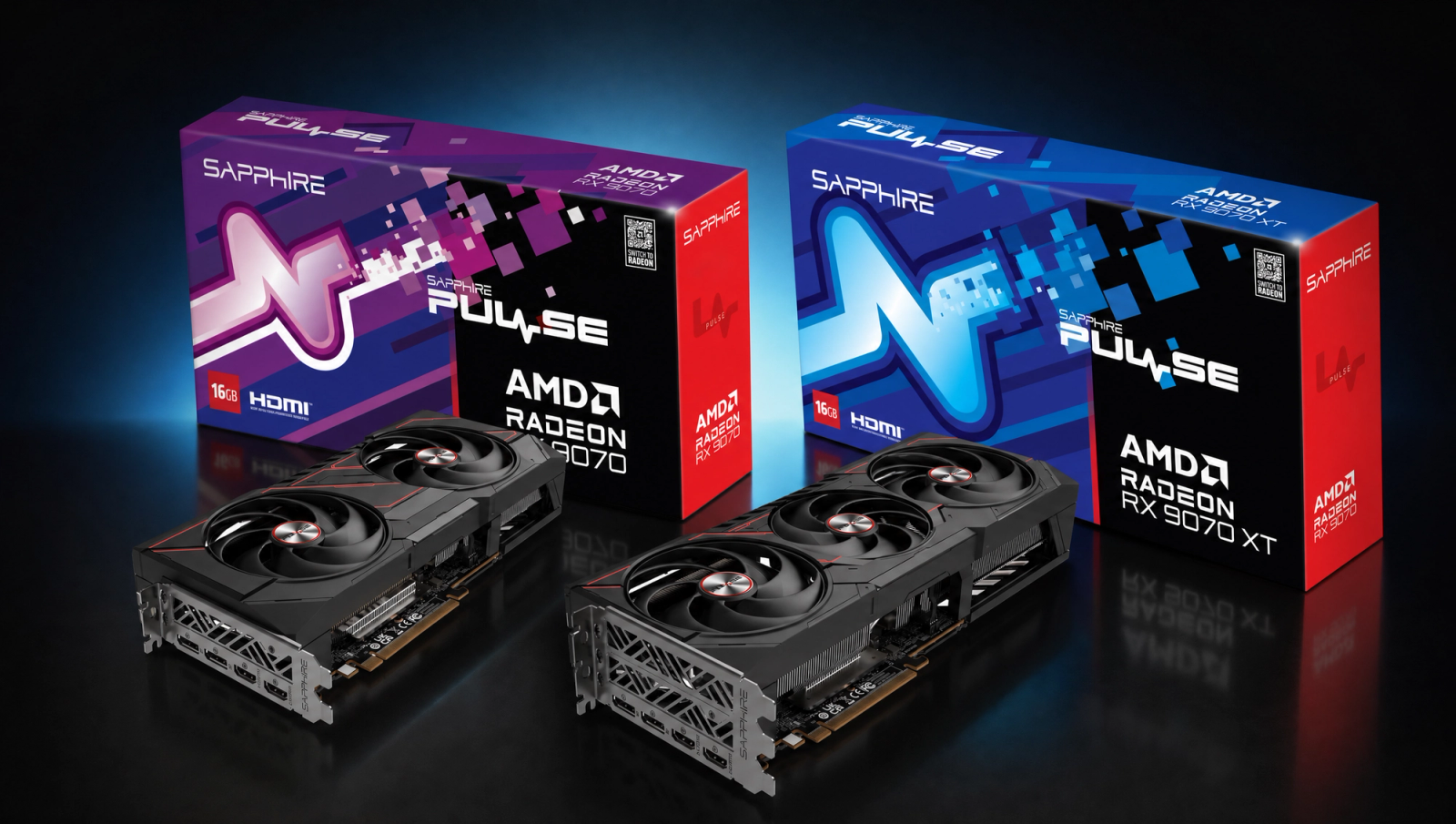

RX 9070 vs RX 9070 XT

You've already decided on RDNA 4 at the mainstream tier. The real question is whether the XT step pays back for your panel, your case, and your power supply, or whether the non-XT is the smart pick once you stop treating the spec sheet as a leaderboard.

This guide is built around three axes: the panel you're feeding, how much ray tracing matters in the titles you actually play, and whether the 84 watt TBP gap between the two cards is going to force a PSU upgrade you weren't planning on. The picks below are the matching Sapphire Pulse SKUs on each side, so the comparison is shroud-for-shroud and cooler-for-cooler. The scenario matrix tells you which one wins for your case before you read another word.

At a glance

Where each GPU wins

What the CU and TBP delta actually buys you

Same chip family, same VRAM pool, same upscaling tech. The interesting math is at the spec lines that diverge: 56 compute units against 64, and 220 watts against 304 at the wall.

Eight extra compute units sounds modest until you remember the XT is a fully enabled Navi 48 die and the non-XT is a cut-down version of the same silicon. At 1080p competitive, the gap closes to nothing because both cards are CPU-bound at the top of the panel ladder. At 1440p ultra raster, the XT pulls out a stable double-digit percent lead in the games that hit the GPU hard. At 1440p with ray tracing on, the gap widens further because the extra CUs also bring more RT accelerator throughput. At 4K with FSR 4 Quality, the XT is the card that keeps raster-friendly AAA in playable bands where the non-XT starts to fall off.

The TBP delta is the other axis, and it's the one most buyers underweight. The non-XT pulls about 220 watts under sustained load; the XT pulls about 304 watts. That 84 watt difference shows up three places: at the fan curve (the non-XT runs noticeably quieter under matched load), at the case thermals (the non-XT is a cleaner answer for sub-15 L cases and silent towers), and at the power supply. The reference recommendation lands at 550 to 650 watts from a quality OEM for the non-XT, and 750 watts for the XT once you account for transient spikes alongside a modern CPU. If your current build runs a quality 650 watt unit, the non-XT drops in. The XT, for most people, means a PSU upgrade, and that's a budget line nobody tells you about when they post the FPS bar chart.

Power-delivery shape is identical on both cards: dual 8-pin PCIe connectors. There's no 12V-2x6 handling discipline at this tier, no adapter chains to worry about, no native-cable rule. You plug in two PCIe cables and you're done. That's a simplifying signal in a year where NVIDIA's connector handling still gets buyers in trouble, and neither RDNA 4 SKU at this tier asks you to think about it.

FSR 4 is the same on both chips. RDNA 4 lifted the upscaling story for the whole stack, and the visual quality and motion stability at 1440p Quality are good enough that for the raster-first buyer, it stops being a discriminator. The XT doesn't get more FSR 4; the non-XT doesn't get less of it.

If you're cross-shopping the cross-vendor question, the RTX 5070 vs RX 9070 comparison is the same panel-and-RT call against NVIDIA's mainstream, and the RTX 5070 vs RX 9070 XT comparison is the up-tier cross-vendor version. For the full buyer's framework, the how to choose a GPU and matching monitor reference covers the broader landscape.

Benchmarks

Four reviewer-sourced scenarios that separate the two cards cleanly. Values below are confirmed via reviewer benchmarks; check the linked sources for full methodology.

Sapphire Pulse RX 9070

Specs that matter

• Chip: AMD RX 9070, RDNA 4 Navi 48 (cut-down configuration)
• Compute units: 56 CU
• VRAM: 16 GB GDDR6 on a 256-bit bus, ~640 GB/s bandwidth
• Boost clock: ~2520 MHz
• TBP: ~220 W, dual 8-pin PCIe power connectors
• Cooler: 2.5-slot Sapphire Pulse design, SFF-friendlier footprint
• Features: FSR 4 (RDNA 3+), 3rd-gen RT accelerators, 2nd-gen AI accelerators, PCIe 5.0

Where it wins

The non-XT's case at this tier is efficiency without giving up the panel tier. 220 watts of TBP runs noticeably cooler and quieter under sustained load than the XT's 304, and the fan curve on the Pulse shroud reflects it. Under matched 1440p AAA workloads, the non-XT is the card you don't hear over the case fans. For an SFF build in a sub-15 L case or a silent tower with a high airflow target, the non-XT is the easier compatibility decision. You're not making thermal compromises; you're skipping the thermal homework.

The PSU story is the other case, and it's a bigger one than buyers usually weigh. A quality 650 watt unit handles the non-XT with comfortable headroom, and even a top-tier 550 is realistic for builds where the CPU side doesn't spike hard. The XT's 304 watt TBP, combined with transient spikes and a modern CPU, pushes most builders into a 750 watt minimum recommendation, and that's a real budget line. If your current PSU is anywhere in the 550 to 650 bracket and you don't want to swap it, the non-XT keeps the rest of your build untouched.

The 1080p competitive case is the third one. Both cards are CPU-bound at the top of a 240 Hz panel ladder, so the FPS difference between them at 1080p competitive evaporates. Once the framerate ceiling is set by the CPU, what's left is acoustics, thermals, and wall pull, and the non-XT wins all three. For a competitive player who keeps the case under their desk and cares about hearing the game, the non-XT is the better fit at this tier. For more on matching the rest of the build at this performance class, the best mid-range RT GPUs reference frames the price-performance landscape around this tier.

Where you give something up

The 1440p ultra raster ceiling is the cleanest concession. The XT's full-die advantage shows up in raster-leaning AAA at ultra preset: Hogwarts Legacy, Stalker 2 in raster, BG3, the full Witcher 3 next-gen, where the non-XT lands a stable double-digit percent behind. If your reflex when you see a slider labeled 'Texture quality' is to drop everything to ultra and walk away, the XT does that with more headroom than the non-XT does. The non-XT still handles 1440p ultra in most current AAA; it just doesn't have the same buffer for the games that hit the GPU hardest.

Ray tracing at 1440p is where the gap widens. RDNA 4 closed the RT gap meaningfully versus RDNA 3, and the non-XT is genuinely competent at light RT and selective RT. In heavy-RT 1440p AAA, though, the XT's extra CUs and RT-accelerator throughput show up clearly. Cyberpunk RT, Alan Wake 2 RT, Black Myth Wukong on Cinematic with RT high are the cases where the XT holds a more comfortable playable band and the non-XT runs into the playability ceiling sooner. If RT is a regular feature in your library rather than a treat, the XT is the right call.

The 4K conversation is the long-hold one. The non-XT handles 4K with FSR 4 Quality on raster-friendly titles, but the headroom is thinner than the XT's. If you've bought a 4K monitor or you're planning to step up the panel inside the card's service life, the XT has more runway. For 1440p buyers staying put, that's a non-issue.

Sapphire Pulse RX 9070 XT

Specs that matter

• Chip: AMD RX 9070 XT, RDNA 4 Navi 48 (full die)
• Compute units: 64 CU
• VRAM: 16 GB GDDR6 on a 256-bit bus, ~640 GB/s bandwidth
• Boost clock: ~2970 MHz
• TBP: ~304 W, dual 8-pin PCIe power connectors
• Cooler: 2.5-slot Sapphire Pulse triple-fan, reference-class shroud
• Features: FSR 4 (RDNA 3+), 3rd-gen RT accelerators, 2nd-gen AI accelerators, PCIe 5.0

Where it wins

The XT's case at this tier is 1440p ultra without compromise. The full 64-CU Navi 48 die opens a stable double-digit percent raster lead over the non-XT in ultra-preset AAA, and that headroom translates to more comfortable frame pacing in the games that hit the GPU hardest. Hogwarts Legacy ultra, Stalker 2 in raster mode, raster Wukong, Witcher 3 next-gen: the XT lands these with a buffer the non-XT doesn't have. For a 1440p high-refresh buyer who keeps the texture and shadow sliders maxed by habit, the XT is the card that doesn't make you think about it.

Ray tracing at 1440p is the second case, and it's the more obvious one inside the RDNA 4 stack. The extra CUs and RT-accelerator headroom show up clearly in heavy-RT 1440p workloads: Cyberpunk RT, Alan Wake 2 RT, Black Myth Wukong on Cinematic, where the XT holds a playable band the non-XT doesn't quite reach. RDNA 4 is genuinely good at RT now, and the XT is the chip cut that gets the full value of that generational lift inside the AMD line. For buyers whose top three games are RT showcases, the XT is the right call inside the AMD line; the cross-vendor question against NVIDIA's stack is a different article. For the matching build at this tier, the best 1440p GPUs reference frames where the XT sits relative to peers.

The 4K AAA case rounds it out. The XT's bandwidth and compute lead make 4K AAA with FSR 4 Quality realistic on raster-friendly titles where the non-XT runs out of headroom. The 16 GB pool keeps 4K ultra textures honest on both cards, but the XT has the raw throughput to hold the playable band where the non-XT trips into the upper twenties. If your panel is 4K or you're planning to step up to one inside the card's service life, the XT buys more runway.

Where you give something up

The efficiency concession is the obvious one. 304 watts of TBP runs hotter, louder, and pulls more from the wall than the non-XT's 220, and on the Pulse XT specifically, the cooler is the reference-class shroud, not the premium one. Reports suggest the Pulse XT runs warmer under sustained load than the Nitro+ in matched cases, and that shows up at the fan curve. Buyers expecting Nitro+ acoustics on a Pulse XT badge should know the cooler is a tier below; if quiet operation is a high priority, the Pulse non-XT or a step up to the Nitro+ XT is the better fit.

The 550 to 650 W PSU bracket is the practical concession. Most 650 watt units can handle the XT with care, but headroom is thin enough that the realistic recommendation lands at 750 watts once you account for transient spikes alongside a modern CPU. If your existing PSU is in the 550 to 650 range and you want to keep it, the math points at the non-XT, not the XT. Buyers willing to swap to a quality 750 watt unit at this tier shouldn't think twice, but it's a budget line worth pricing in before clicking buy.

The 1080p competitive case is a wash. Both cards are CPU-bound at the top of a 240 Hz panel ladder, so the XT's extra TBP buys nothing on the framerate side at 1080p competitive: it just adds noise and heat for a result your CPU is gating anyway. For a competitive player whose panel is 1080p and whose primary games are esports titles, the non-XT is the cleaner answer and the XT is overkill. The XT is the wrong card for that buyer, and the price step over the non-XT doesn't earn its keep.

Pick by buyer profile

The efficiency-conscious 1440p builder (the wedge buyer): quality 550 to 650 W PSU already specced, mid-tower or smaller, values fan acoustics and thermal headroom. Buy the Sapphire Pulse RX 9070. The 220 W TBP drops into the existing PSU bracket without forcing an upgrade, the fan ramp stays civil under sustained AAA load, and the 16 GB pool plus FSR 4 keeps 1440p ultra raster comfortable.

The 1440p ultra-everything AAA player: 144 Hz panel, raster-leaning library, RT-on when the title supports it well. Buy the Sapphire Pulse RX 9070 XT. The full 64-CU Navi 48 die opens the raster headroom that ultra preset demands and keeps RT-on AAA in playable bands at 1440p where the non-XT falls off.

The ray-tracing or 4K-with-upscaling buyer: Cyberpunk RT, Alan Wake 2 RT, Wukong RT preference, or a 4K panel running FSR 4 Quality. Buy the Sapphire Pulse RX 9070 XT. The extra CUs and RT-accelerator headroom are visible in heavy-RT 1440p, and the bandwidth lead makes 4K AAA realistic on raster-friendly titles.

The SFF, quiet-build, or hands-off compatibility buyer: sub-15 L case, silent tower target, or simply wants the no-thinking PSU and thermal answer at this tier. Buy the Sapphire Pulse RX 9070. The 84 W TBP delta versus the XT translates to lower fan ramp, easier case airflow planning, and a clean 650 W PSU answer for builders who don't want to swap up.

Bottom line

If your panel is 1440p high-refresh and you push ultra textures or run ray tracing in showcase titles, the Sapphire Pulse RX 9070 XT earns the step up: raster headroom, RT scaling, and 4K-with-upscaling runway. If your build is SFF or quiet-focused, or your PSU sits in the 550 to 650 W bracket, the Sapphire Pulse RX 9070 is the smarter answer; the 84 W TBP delta is the practical signal more than the spec sheet suggests. If you're stuck between them, ask which side of the budget the PSU upgrade sits on, since that single line tilts the decision more often than the FPS bar charts do. The current GPU deals page is worth a check before you click; price drift at this tier is the most likely thing to move between brief and buy.
