Best 1000W PSUs for RTX 5090 Builds (2026)

The RTX 5090 has a 575W TDP. That number sends a lot of builders straight to a 1200W PSU and most of the time they don't need it. A well-spec'd 1000W unit with ATX 3.1 transient certification handles the full RTX 5090 load profile without flinching, and it does it at better efficiency than an oversized 1200W running light.

What makes a PSU actually RTX 5090-ready isn't wattage alone. The card pulls around 560W sustained at 4K under load, but it can spike past 650W in short bursts and briefly touch 900W in sub-millisecond transients. The ATX 3.1 spec is built specifically for this behavior: it requires PSUs to absorb 200% of rated wattage in transient spikes. An older ATX 2.x 1000W unit only needs to handle 120% transients, which means it can trip over-current protection or stress cables in a way you won't catch until something fails.

Every unit on this list is ATX 3.1 certified, ships with a native 12V-2x6 cable, and has been put through independent lab testing. No adapters, no ATX 2.x platforms with a new cable bolted on.

Is 1000W Enough for an RTX 5090?

The short answer: yes, if the PSU carries ATX 3.1 certification. Here is why.

The Power Math

In a typical RTX 5090 build with a current-gen CPU, two NVMe drives, a 360mm AIO, and case fans, here is what is actually on the wire at sustained gaming load:

• RTX 5090 sustained gaming load: ~560W
• CPU under gaming load (65 to 80% of TDP): 80 to 100W
• Everything else (memory, storage, fans, motherboard): ~50W
• Total sustained system draw: approximately 690 to 710W

At 700W draw, a 1000W PSU is running at 70% load. That is right in the efficiency sweet spot for Gold units (87 to 91% efficiency at that load ratio). You have roughly 290 to 310W of real headroom before you're anywhere near the rated limit. A 1200W unit at the same draw sits at 58% load, which falls slightly below the optimal efficiency band, costs more, and provides capacity you won't use in a single-GPU build.

Why ATX 3.1 Makes or Breaks the Pick

The RTX 5090's transient power profile is the real challenge, not the sustained draw. In gameplay, the card can spike to 650 to 740W for 5 to 20 milliseconds, and independent testing recorded sub-millisecond bursts up to roughly 900W.

ATX 3.1 PSUs are certified to handle 200% of rated wattage in transients for up to 100 microseconds. That means a 1000W ATX 3.1 unit has documented tolerance for 2,000W transients at the spec limit. An ATX 2.x unit at any wattage is only spec'd for 120% transients. At 1000W, that is a 1,200W transient ceiling. The RTX 5090's sub-millisecond peaks approach and can briefly exceed that ceiling.

The practical consequence: ATX 2.x units can trip over-current protection at random under load, produce subtle ripple artifacts on the 12V rail, or degrade over time in ways that won't show up until a stability problem surfaces months later. ATX 3.1 exists specifically to address this. Pair an RTX 5090 only with a PSU that explicitly carries ATX 3.1 certification.

The 12V-2x6 Connector vs. Adapters

The RTX 5090 uses the 16-pin 12V-2x6 connector. This is the updated version of the 12VHPWR that shipped with the RTX 4090, and the update matters. The 4090 had documented connector melt failures traced to partial seating: a 12VHPWR connector that was not fully clicked home could arc under load and damage the cable shroud.

The 12V-2x6 redesign addressed those failure modes directly. It added a physical locking tab that prevents partial insertion, revised sense pins that communicate real-time power draw back to the PSU firmware, and tighter cable gauge requirements. Every unit on this list ships with a native 12V-2x6 cable. If your current PSU uses a 12VHPWR-to-12V-2x6 adapter, you are adding a stress point at exactly the joint that caused 4090 failures.

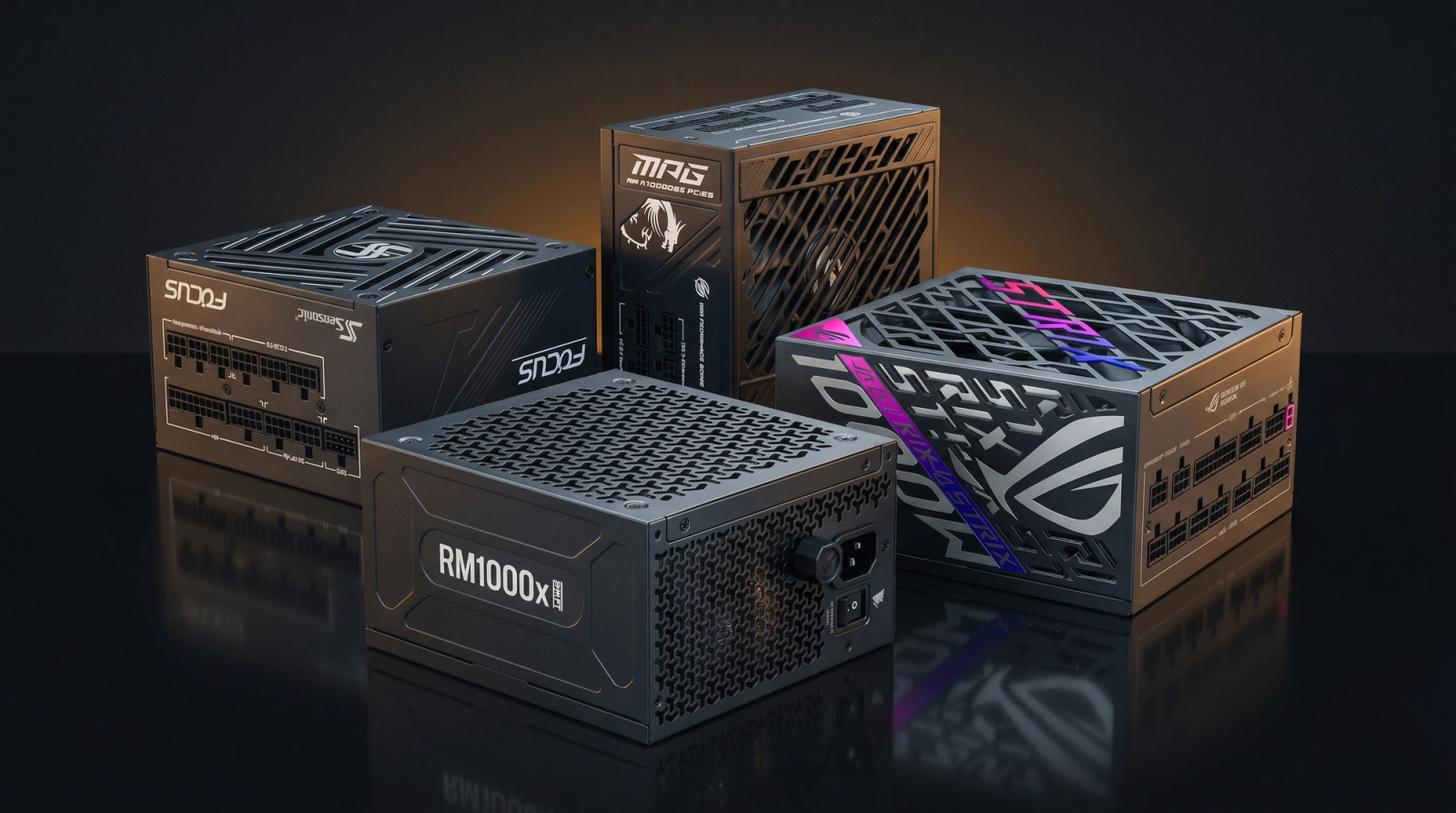

The 5 Best 1000W PSUs for RTX 5090 Builds

Every unit here is ATX 3.1 certified, ships with a native 12V-2x6 cable, and carries independent efficiency certification. Here is how they compare before the deep dives.

Corsair RM1000x Shift (2025)

Best all-around 1000W for RTX 5090 builds

The Shift redesign puts the modular connectors on the side of the PSU instead of the back. In cases where the PSU mounts in a basement chamber with cables routing upward, that 90-degree orientation simplifies cable management in a way that sounds small until you're inside a case with a fistful of 12V-2x6 cable trying to route it cleanly. The cables exit from the side and route straight up into the tuck area without fighting a stiff right-angle run from a rear port.

The 2025 revision is where Corsair brought the Shift platform to ATX 3.1 with a native 12V-2x6 cable. Previous Shift units were ATX 3.0 with 12VHPWR, which is functional but not the version you want for an RTX 5090 build. The fan-speed control knob on the rear panel is a physical dial with no software dependency. You can pin it to silent mode or let the fan scale automatically without installing iCUE.

CWT-built platform, 105 degree-rated Japanese capacitors, Cybenetics Gold certification, and Zero RPM mode below load threshold. The RM1000x Shift (2025) is one of the most widely stocked 1000W units right now.

ASUS ROG Strix 1000W Platinum

Best quiet premium pick with highest efficiency rating

The ROG Strix Platinum is the unit you choose when you want the RTX 5090's power delivery handled with the highest available efficiency and the lowest noise floor. GaN MOSFETs (gallium nitride instead of conventional silicon) run at lower switching losses than standard MOSFET designs. Less heat inside the unit means the fan needs to run less, which means less noise at any given load level.

The IVS (Intelligent Voltage Stabilizer) port works by connecting a separate cable from the PSU to the GPU's 12V-2x6 cable during assembly. The PSU firmware then gets real-time voltage feedback directly from the GPU rail and can modulate output to address the RTX 5090's variable transient demand. This is part of why the unit earned the Cybenetics Lambda A+ rating, which is the highest independent noise-efficiency certification in PSU testing.

At Platinum efficiency, the unit pulls roughly 20 to 35W less from the wall at sustained 700W draw compared to Gold units. In a build running long sessions, that lower heat output matters for case temperatures and long-term fan life. The fan does not spin below 40% load, and above that threshold it runs one of the quietest fan curves in this class.

Seasonic Focus GX 1000W (ATX 3.1)

Best value pick on this list, Seasonic in-house platform with full ATX 3.1 native

Seasonic manufactures its own PSU platforms in-house. Most PSU brands source their guts from OEM manufacturers (Channel Well Technology, Super Flower, Great Wall, and others); Seasonic designs and builds their own. The Focus GX ATX 3.1 is Seasonic's current-generation platform with native ATX 3.1 and 12V-2x6 connector support, distinct from the older Vertex GX units that ran on an ATX 3.0 / 12VHPWR platform.

In-house manufacturing means Seasonic controls the full supply chain rather than applying their brand to an OEM reference design. That shows up as consistent voltage regulation and reliable capacitor sourcing over a long track record. The Focus GX is the value anchor of this list. Ten-year warranty and Cybenetics Gold certification for independent verification.

MSI MPG A1000GS PCIE5

Best compact pick with dual 12V-2x6 cables and server-grade capacitors

The A1000GS ships with two native 12V-2x6 cables in the box. For a standard single-GPU gaming build that is redundant, but for a workstation running the RTX 5090 alongside a compute card, or for anyone who wants a backup cable without sourcing a third-party one, having both from day one removes a sourcing step.

At 140mm depth versus the 160mm of the Seasonic Focus GX, the A1000GS fits smaller ATX cases with tighter PSU bays. Server-grade capacitors (rated for tighter tolerances and higher operational duty cycles than standard consumer-grade caps) and semi-digital control architecture (faster transient response than purely analog designs) are real differentiators in the spec sheet. MSI's Great Wall-built platform has consistent voltage regulation results in independent testing, and the unit carries a 10-year warranty.

be quiet! Dark Power 13 1000W

Best pick for silent builds with Titanium efficiency and four independent rails

The Dark Power 13 is the only 80+ Titanium unit on this list. At the typical 700W system draw of an RTX 5090 build, Titanium efficiency means the unit pulls roughly 25 to 40W less from the wall than the Gold units here. Over a full day of sessions, that lower heat output matters for sustained case temperatures and fan longevity inside the unit.

The Silent Wings fan is a genuine differentiator. Under 80% load it produces under 20dB, which is below the ambient noise floor of most PC builds. Four independent 12V rails provide tighter per-rail over-current protection than single-rail designs. In practice, this means a fault or short on one rail does not cascade to the others. Most modern PSUs use single-rail architecture because it simplifies design and allows higher peak current draw; be quiet! maintains multi-rail because the per-rail protection is the safer long-term architecture for a PSU carrying this much continuous load.

There is also a hardware Overclocking Key on the back panel: a physical switch that collapses the multi-rail architecture into a single high-current rail for extreme overclocking scenarios where CPU or memory spikes might otherwise trip a rail's OCP threshold. The BN661 revision is ATX 3.1 with native 12V-2x6. This is the premium silent pick.

What to Skip

Not every 1000W unit is RTX 5090-ready. A few categories actively fail the card.

Any ATX 2.x PSU at any wattage. The transient tolerance spec difference is the documented issue, not a theoretical risk. Even a high-quality 1200W ATX 2.x unit should not be paired with an RTX 5090 for sustained use.

1000W Gold units without explicit ATX 3.1 labeling. Many units marketed as PCIe 5.0 ready are ATX 2.x platforms with a 12VHPWR or 12V-2x6 adapter cable added. The cable is the easy part. The transient spec is what these units skip. If the product page does not say ATX 3.1 explicitly, assume it does not have the transient headroom.

Corsair CX1000 and pre-2024 RM1000. The CX line uses a different, lower-tier OEM platform. The pre-2024 RM1000 is an ATX 2.x unit with a different cable set. The RM brand name does not carry over to RTX 5090 suitability. The RM1000x Shift (2025) is a fundamentally different platform from older RM units.

Budget no-name 1000W units. Unknown Chinese PSU brands claiming 1000W 80+ Gold have a high load-test failure rate. They frequently cannot reach rated wattage under actual load, lack real independent certification, and have poor transient response. A failed PSU at RTX 5090 loads can damage other components in the build.
