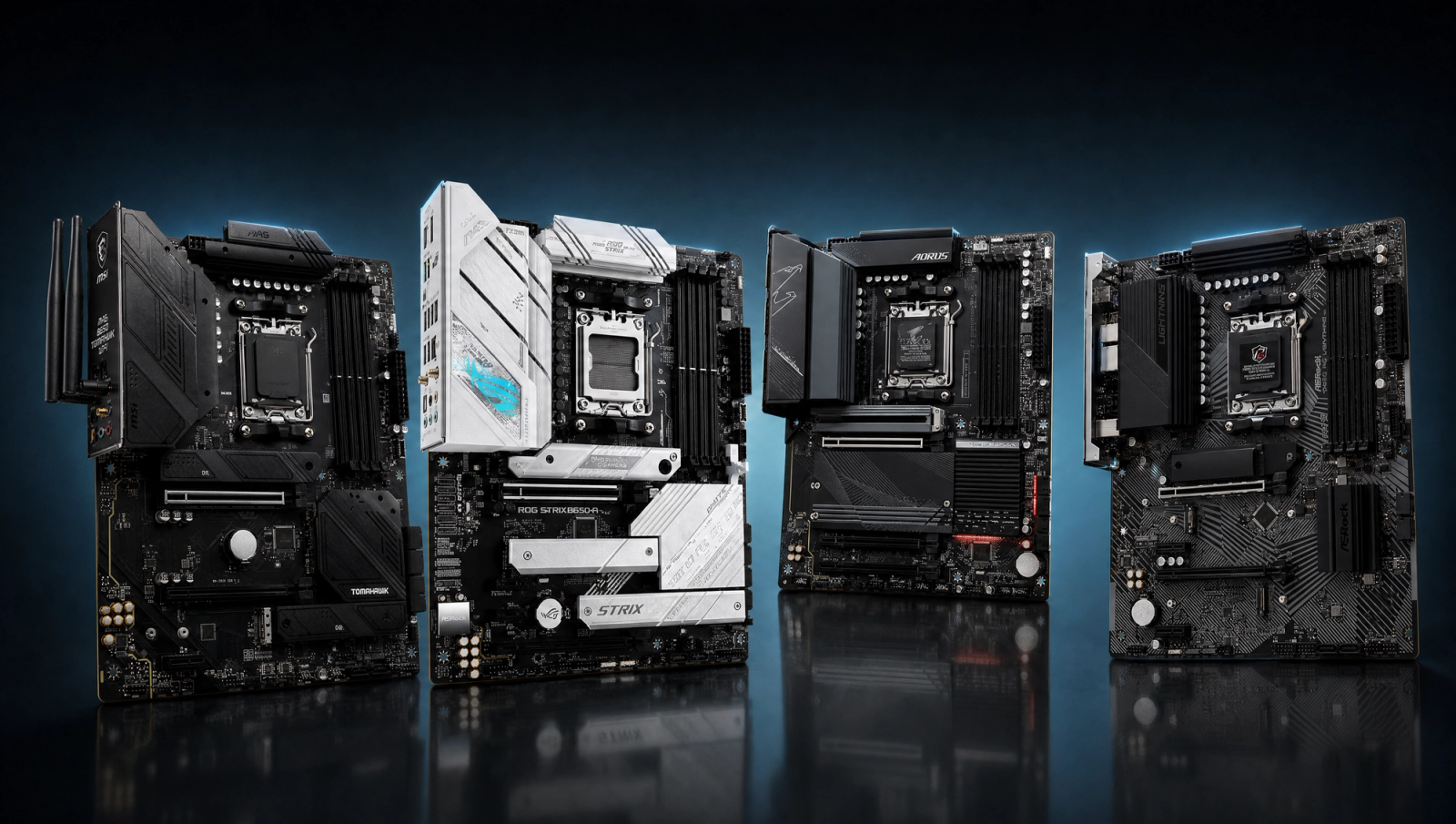

Best B650 Motherboards for Ryzen 9000 (2026): 5 Picks

Best B650 Motherboards for Ryzen 9000 (2026): 5 Picks

By · FounderUpdated Nov 10, 2026

You picked B650 over B850 for a Ryzen 9000 build, and in a lot of builds that is the right call. Both chipsets sit behind the same processor, which feeds the graphics slot and the main SSD slots either way. What B850 adds is short: a guaranteed PCIe 5.0 SSD slot and the option of a PCIe 5.0 graphics slot.

So the B650 worth buying is one that adds those features back by itself. These five do, each with a button that flashes the BIOS without a CPU installed. One warning first: AMD has stopped making the chipset, and the shelves are thinning.

Our top pick: ASRock B650 Steel Legend WiFi

The ASRock B650 Steel Legend WiFi is the B650 that leaves the least on the table next to B850: a PCIe 5.0 graphics slot, a PCIe 5.0 M.2 slot, 20Gbps USB-C and a Flashback button, sold by ASRock's own Amazon storefront.

ASRock B650 Steel Legend WiFi 6E AMD Socket AM5 Ryzen 9000 8000 and 7000 Series SATA3 M.2 DDR5 7200+(OC) 256GB SATA3 6.0 Gb/s ATX Motherboard BIOS Flashback
ASRock B650 Steel Legend WiFi 6E AMD Socket AM5 Ryzen 9000 8000 and 7000 Series SATA3 M.2 DDR5 7200+(OC) 256GB SATA3 6.0 Gb/s ATX Motherboard BIOS Flashback
$159.99

Quick picks

Five B650 boards for Ryzen 9000, each chosen for what it adds back from the B850 feature list.

Specs at a glance

  • Size

    ATX

    Graphics slot

    PCIe 5.0 x16

    M.2 (Gen5 / Gen4)

    1 / 2

    Fastest rear USB

    20Gbps USB-C

    No-CPU BIOS flash

    BIOS Flashback

    Network

    Wi-Fi 6E, 2.5G

  • Size

    ATX

    Graphics slot

    PCIe 4.0 x16

    M.2 (Gen5 / Gen4)

    1 / 2

    Fastest rear USB

    10Gbps USB-C

    No-CPU BIOS flash

    Q-Flash Plus

    Network

    Wi-Fi 6E, 2.5G

  • Size

    ATX

    Graphics slot

    PCIe 4.0 x16

    M.2 (Gen5 / Gen4)

    1 / 2

    Fastest rear USB

    20Gbps USB-C

    No-CPU BIOS flash

    BIOS FlashBack

    Network

    Wi-Fi 6E, Intel 2.5G

  • Size

    ATX

    Graphics slot

    PCIe 4.0 x16

    M.2 (Gen5 / Gen4)

    0 / 2

    Fastest rear USB

    20Gbps USB-C

    No-CPU BIOS flash

    Flash BIOS Button

    Network

    Wi-Fi 6E, 2.5G

  • Size

    Mini-ITX

    Graphics slot

    PCIe 5.0 x16

    M.2 (Gen5 / Gen4)

    1 / 1

    Fastest rear USB

    10Gbps USB

    No-CPU BIOS flash

    BIOS Flashback

    Network

    Wi-Fi 6E, 2.5G

Every board has a way to update the BIOS with no CPU in the socket. The columns that separate them are the graphics slot and the M.2 split.

What B850 adds over B650

  • Graphics slot

    B650

    PCIe 4.0 in AMD's spec; some boards wire it for 5.0

    B850

    PCIe 5.0 optional

    X870

    PCIe 5.0 required

  • M.2 storage

    B650

    PCIe 5.0 optional

    B850

    PCIe 5.0 required

    X870

    PCIe 5.0 required

  • USB4

    B650

    Not part of the chipset

    B850

    Not part of the chipset

    X870

    Required

  • Lanes to the graphics card and main SSDs

    B650

    From the CPU

    B850

    From the CPU

    X870

    From the CPU

  • Status

    B650

    Discontinued, stock draining

    B850

    Current

    X870

    Current

Chipset requirements as AMD defines them. Individual boards can go beyond them.

The graphics slot: about 1% at stake

AMD's B650 spec runs the main x16 slot at PCIe 4.0, and B850 lets board makers move it to PCIe 5.0 if they want to. That sounds like the big upgrade, but the cost of staying on PCIe 4.0 is small. TechPowerUp ran an RTX 5090, the most bandwidth-hungry gaming card on sale, on both links and measured about a 1% average loss on PCIe 4.0 x16 at 1080p, 1440p and 4K.

Two of the picks here, the ASRock B650 Steel Legend WiFi and the ASRock B650I Lightning WiFi, wire the slot for PCIe 5.0 anyway. ASRock did that on its own, outside what the B650 spec asks for. If a Gen5 graphics slot is a hard requirement, our B650E boards guide covers the variant of this chipset that guarantees one.

Storage: the one guarantee B850 adds

Every B850 board has at least one PCIe 5.0 M.2 slot. On B650 that slot is optional, so some boards have it and some do not. Four of the five picks here have one, and the specs table shows which. If you are not buying a Gen5 SSD, this difference costs you nothing: a Gen4 drive runs at full speed in any of these boards.

USB4 and Wi-Fi 7 belong to the board, not the chipset

Neither chipset brings USB4. AMD only requires it on X870 and X870E, through a separate controller, so if you need USB4 for a dock or external drive, skip both and look at X870 boards for Ryzen 9000. Wi-Fi 7 is a board maker's choice on every AM5 chipset. It is common on B850 boards and absent on all five of these, which run Wi-Fi 6E. The fastest port you get here is a 20Gbps USB-C on three of the five.

B650 is being phased out

AMD confirmed to Tom's Hardware that it is discontinuing the B650 chipset to move board makers to B850, and said existing retail stock would run down over the following quarters. That has two effects on you. Picks drift as listings sell out, so buy from a current listing rather than an old bookmark. And as stock thins, some B650 boards get priced at or above the B850 board that replaced them.

The rule we use: if a B650 board costs the same as the comparable B850 from the same brand, buy the B850. It arrives on newer firmware and guarantees the Gen5 SSD slot. Our B850 boards for Ryzen 9000 guide has the step-up picks.

Benchmarks

RTX 5090 at 1440p by PCIe link, relative performance (PCIe 5.0 x16 = 100)

Average across TechPowerUp's game suite with an RTX 5090. A motherboard does not change frame rates by itself; the link to the graphics card is the one platform setting that can.

Source: TechPowerUp, NVIDIA GeForce RTX 5090 PCI-Express Scaling (January 2025), figures as reported from that review.

This is the one test where the motherboard shows up in frame rates. On PCIe 4.0 x16, which is what three of these boards give the graphics card, the RTX 5090 lost about 1%. At 4K, TechPowerUp's averages were 146.0 FPS on PCIe 4.0 x16 against 147.1 FPS on PCIe 5.0 x16. Slower cards lose less, because they move less data over the link.

The row that matters more is PCIe 4.0 x4, about 10% down at 1440p. That is the bandwidth of the second x16-length slot on an ATX B650 board, which hangs off the chipset rather than the CPU. Put the graphics card in the top slot. If a riser cable or a vertical mount sends it to the lower slot, you give up far more than the chipset tier ever cost you.

How we picked

We did not run per-board game benchmarks. With the same CPU, memory and graphics card, motherboards typically land within run-to-run noise at stock settings, so a chart of five boards would show five identical bars. We picked on the things that differ between boards:

A BIOS flash with no CPU. A B650 board built before Ryzen 9000 support needs a BIOS on AMD's AGESA 1.2.0.x line or later before a 9000-series chip will boot, and the Ryzen 7 9850X3D needs newer firmware than that. Every pick has a rear button that writes the BIOS from a USB stick with only the power cables connected. Vendors name it differently: BIOS Flashback, Q-Flash Plus, BIOS FlashBack, Flash BIOS Button. Our 9850X3D on B650 BIOS guide lists the firmware each vendor shipped.

Power delivery with headroom for the chips people pair with B650. The Ryzen 7 9800X3D and 9850X3D are 120 W parts, and every ATX pick here runs 12 or more Vcore stages. The Mini-ITX pick is the one where VRM heat is part of the decision, and its section says so.

The features that close the B850 gap: a Gen5 M.2 slot, the graphics slot generation, and the fastest USB-C port. Then the seller: Amazon or the board maker's own storefront where we could, because a third-party listing for a discontinued board is more likely to ship old stock on old firmware. Boards we already pick in other AM5 guides were left out to give you more options. If you want the full checklist for reading a board's spec page, see how to read a motherboard spec sheet, and for the CPU side of the decision, how to choose a CPU and motherboard.

Best Overall: ASRock B650 Steel Legend WiFi

This is the B650 to buy if you want to skip B850 without skipping what B850 is known for.

ASRock B650 Steel Legend WiFi 6E AMD Socket AM5 Ryzen 9000 8000 and 7000 Series SATA3 M.2 DDR5 7200+(OC) 256GB SATA3 6.0 Gb/s ATX Motherboard BIOS Flashback
ASRock B650 Steel Legend WiFi 6E AMD Socket AM5 Ryzen 9000 8000 and 7000 Series SATA3 M.2 DDR5 7200+(OC) 256GB SATA3 6.0 Gb/s ATX Motherboard BIOS Flashback
$159.99

Specs

  • Chipset

    AMD B650

  • Form factor

    ATX

  • VRM

    14+2+1 phases (listed)

  • Graphics slot

    PCIe 5.0 x16 (CPU)

  • M.2

    3 slots: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4

  • Fastest rear USB

    20Gbps USB-C

  • Networking

    Wi-Fi 6E, 2.5G LAN (Realtek)

  • BIOS recovery

    BIOS Flashback button

What it does well

ASRock wired the main x16 slot for PCIe 5.0, which AMD's B650 spec does not ask for. Add the Gen5 M.2 slot from the CPU and the ASRock B650 Steel Legend WiFi has both of the features that define B850, on the older chipset.

The rest of the list: two more Gen4 M.2 slots, a 20Gbps USB-C port on the rear, Wi-Fi 6E and 2.5G LAN. The Flashback button sits on the rear I/O, so a board that shipped on old firmware is a ten-minute fix with a USB stick, not a borrowed CPU.

Retail listings put the power stages at 14+2+1, comfortable for a Ryzen 7 9800X3D and enough for a Ryzen 9 9900X at stock.

What you give up

The wireless is Wi-Fi 6E, not Wi-Fi 7, and the LAN is Realtek rather than Intel. A B850 board at the same price likely has both.

The second x16-length slot is PCIe 3.0 at x4, and a German review notes it drops to x2 when the first two SATA ports are in use. That only bites if you planned a capture card or second GPU there. There is no USB4. Buyers have flagged that the B650E Steel Legend sits right next to it on Amazon with a different power design; the ASIN here is the plain B650 model.

Who it's for

A Ryzen 7 9700X or 9800X3D gaming build on ATX that may take a Gen5 SSD later. If your plan is a 9800X3D specifically, our motherboards for the 9800X3D guide compares boards across every chipset.

Best Value: Gigabyte B650 Aorus Elite AX

The Elite AX gives you the Gen5 M.2 slot that B850 guarantees, with more power stages than anything else in this price band.

GIGABYTE B650 AORUS Elite AX AMD AM5 ATX Motherboard, Support Ryzen 9000/8000/7000 Series, DDR5, 14+2+1 Power Phase, PCIe 5.0 M.2, USB-C 3.2 Gen 2, WIFI6E, 2.5GbE, EZ-Latch, Q-Flash, RGB Fusion
GIGABYTE B650 AORUS Elite AX AMD AM5 ATX Motherboard, Support Ryzen 9000/8000/7000 Series, DDR5, 14+2+1 Power Phase, PCIe 5.0 M.2, USB-C 3.2 Gen 2, WIFI6E, 2.5GbE, EZ-Latch, Q-Flash, RGB Fusion
$149.99$219.99

Specs

  • Chipset

    AMD B650

  • Form factor

    ATX

  • VRM

    14+2+1 phases

  • Graphics slot

    PCIe 4.0 x16 (CPU)

  • M.2

    3 slots: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4

  • Fastest rear USB

    10Gbps USB-C (20Gbps front header)

  • Networking

    Wi-Fi 6E, 2.5G LAN

  • BIOS recovery

    Q-Flash Plus button

What it does well

Gigabyte runs 14 parallel Vcore phases plus two for the SoC, under one heatsink joined by a heat pipe. Tech4Gamers measured the MOSFETs at 42.2 C during Cinebench R23 in a 31 C room, which leaves a lot of room for a 120 W X3D chip.

The first M.2 slot is PCIe 5.0 x4 from the CPU, with two Gen4 slots behind it. Q-Flash Plus has its own marked USB port on the rear, so the no-CPU flash is hard to get wrong. Wi-Fi 6E and 2.5G LAN are standard. The listing is sold and shipped by Amazon.

What you give up

The graphics slot is PCIe 4.0 x16, which costs about 1% even on an RTX 5090. The rear USB-C port is 10Gbps; the 20Gbps connection is a front-panel header, so you need a case with a matching port to use it.

There is no debug LED, the audio is the basic ALC897, and the extra expansion slots are two PCIe 3.0 x1. One more trap: Gigabyte also sells a B650 Aorus Elite AX V2 with a different slot layout. Reports suggest the original revision is the one with the Gen5 M.2 slot named in the title, so check that before you buy.

Who it's for

A Ryzen 5 9600X or Ryzen 7 9700X gamer who wants a Gen5 boot drive slot and a safe BIOS path, and does not need PCIe 5.0 on the graphics slot.

Best Premium: ASUS ROG Strix B650-A Gaming WiFi

The Strix B650-A is the easiest board here to build in and troubleshoot.

ASUS ROG Strix B650-A Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 12 + 2 power stages, DDR5, 3x M.2 slot, PCIe® 4.0, 2.5G LAN, WiFi 6E, USB 3.2 Gen 2x2 Type-C®, Aura Sync
ASUS ROG Strix B650-A Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 12 + 2 power stages, DDR5, 3x M.2 slot, PCIe® 4.0, 2.5G LAN, WiFi 6E, USB 3.2 Gen 2x2 Type-C®, Aura Sync
$129.99$189.99

Specs

  • Chipset

    AMD B650

  • Form factor

    ATX (white and silver)

  • VRM

    12+2 power stages

  • Graphics slot

    PCIe 4.0 x16 (CPU)

  • M.2

    3 slots: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4

  • Fastest rear USB

    20Gbps USB-C

  • Networking

    Wi-Fi 6E, Intel 2.5G LAN

  • BIOS recovery

    BIOS FlashBack button, Q-LED

What it does well

ASUS pairs BIOS FlashBack with Q-LED, so a board that will not POST shows you which stage failed instead of a black screen. The Q-Release slot latch and tool-free M.2 latches make the build itself quicker. The silver and white finish suits a white build without hunting for a special edition.

The connectivity is a step up from the rest of the list: Intel 2.5G LAN, a 20Gbps USB 3.2 Gen 2x2 Type-C port on the rear, Wi-Fi 6E, and a PCIe 5.0 M.2 slot from the CPU alongside two Gen4 slots. ASUS lists DDR5 support up to 7600 MT/s (OC) on current firmware, more than the DDR5-6000 kits most Ryzen 9000 builds use.

What you give up

The graphics slot is PCIe 4.0, so the cheaper ASRock B650 Steel Legend WiFi has more PCIe 5.0 than this board. You are paying for the ROG firmware, diagnostics and finish rather than more bandwidth.

It has fewer power stages (12+2) than the Gigabyte and ASRock ATX picks. That is still plenty for an eight-core X3D chip. Buyers have also flagged an older Strix B650-A listing that names only Ryzen 7000 and may ship on firmware that predates Ryzen 9000; the listing linked here names Ryzen 9000 in its title.

Who it's for

A builder who wants the board that is easiest to diagnose, or a white and silver build, running anything up to a Ryzen 9 9900X.

Best Budget: MSI B650 Gaming Plus WiFi

The Gaming Plus WiFi is the cheapest full ATX board here that still gets the essentials right.

MSI B650 Gaming Plus WiFi Gaming Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, ATX)
MSI B650 Gaming Plus WiFi Gaming Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, ATX)
$119.99$139.99

Specs

  • Chipset

    AMD B650

  • Form factor

    ATX

  • VRM

    12+2+1, 80A Vcore stages

  • Graphics slot

    PCIe 4.0 x16 (CPU)

  • M.2

    2 slots, both PCIe 4.0 x4

  • Fastest rear USB

    20Gbps USB-C

  • Networking

    Wi-Fi 6E, 2.5G LAN (Realtek)

  • BIOS recovery

    Flash BIOS button

What it does well

The power stages are better than the price suggests: 12+2+1, with 80A Vcore stages in pokde's teardown. In their test the VRM reached 54 C in a ten-minute Cinebench R23 run on a Ryzen 5 8600G drawing about 86 W, and the reviewer judged it fine for 105 W and 120 W chips.

MSI's Flash BIOS button sits on the rear I/O. The rear panel also has a 20Gbps USB-C port and three 10Gbps USB-A ports, and the board has Wi-Fi 6E and 2.5G LAN. For a gaming build that is most of what anyone uses.

What you give up

There is no PCIe 5.0 anywhere. You get two M.2 slots, both Gen4, and only the first has a heatsink. The I/O shield comes loose in the box rather than pre-installed, and the audio is the entry-level ALC897.

This is the pick that B850's Gen5 SSD guarantee was written for. If a Gen5 drive is on your list, spend up to the Elite AX. The listing was sold by a third-party merchant when we checked, so read the seller line before you buy, and do not confuse it with the micro-ATX B650M Gaming Plus WiFi.

Who it's for

A Ryzen 5 9600X or Ryzen 7 9700X build on a tight budget, running one or two Gen4 SSDs. If you need to go cheaper still, our budget AM5 boards guide covers the next tier down.

Editor's Pick: ASRock B650I Lightning WiFi

The B650I Lightning puts PCIe 5.0 on both the graphics slot and the front M.2 in a Mini-ITX board.

ASRock B650I Lightning WiFi AMD AM5 Mini-ITX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5 7200+ (OC), PCIe 5.0 M.2, 2.5G LAN, WiFi 6E, 8+2+1 Power Phase
ASRock B650I Lightning WiFi AMD AM5 Mini-ITX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5 7200+ (OC), PCIe 5.0 M.2, 2.5G LAN, WiFi 6E, 8+2+1 Power Phase
$169.99$199.99

Specs

  • Chipset

    AMD B650

  • Form factor

    Mini-ITX

  • VRM

    8+2+1, 60A stages

  • Graphics slot

    PCIe 5.0 x16 (reinforced)

  • M.2

    2 slots: 1x PCIe 5.0 x4 front, 1x PCIe 4.0 x4 rear

  • Memory

    2x DDR5 DIMM, 7200+ OC

  • Networking

    Wi-Fi 6E, 2.5G LAN

  • BIOS recovery

    BIOS Flashback button

What it does well

Club386 tested it with a Ryzen 7 7800X3D and a Ryzen 9 7950X, praised the reinforced PCIe 5.0 graphics slot, and scored it 4 out of 5. The front M.2 is Gen5 x4 from the CPU and the rear M.2 is Gen4 x4 from the chipset, so two fast SSDs fit without stacking adapters.

There is a BIOS Flashback button on the rear panel, plus 2.5G LAN and Wi-Fi 6E. For a small case built around a 9800X3D, that covers the whole build.

What you give up

Power delivery is the limit. It runs 8+2+1 stages at 60A, and Profesional Review measured 84 C on the outside of the VRM at full stock load. ASRock also ships a 75 C CPU thermal cap that throttles the chip well before AMD's 95 C limit, which can make a fast CPU look slow in benchmarks. Club386 notes you can raise it through the PTTL setting if your cooler can handle the heat.

The rear USB tops out at 10Gbps, there are only two memory slots, and there is no debug display. It is not a board for overclocking.

Who it's for

A small-form-factor gaming build around a Ryzen 7 9800X3D or 9700X. For a 16-core chip under sustained load, or to compare other small boards, see our AM5 Mini-ITX boards guide.

Bottom line

If you want the B850 feature list on a B650 budget, buy the ASRock B650 Steel Legend WiFi. If you want a Gen5 SSD slot and the most power stages for the money, buy the Gigabyte B650 Aorus Elite AX. If you want the easiest board to troubleshoot or a white build, buy the ASUS ROG Strix B650-A Gaming WiFi. If you only run Gen4 drives and want the cheapest sound ATX board, buy the MSI B650 Gaming Plus WiFi. If you are building small, buy the ASRock B650I Lightning WiFi. And if any of these costs as much as its B850 replacement, buy the B850.

FAQ

Is B650 still worth buying in 2026, or should I get B850?

Yes, when the board itself makes up the difference and costs less. B850 guarantees a PCIe 5.0 M.2 slot and allows a PCIe 5.0 graphics slot; it does not add CPU lanes, USB4 or Wi-Fi 7 by itself. A B650 board with a Gen5 M.2 slot, like the Best Overall and Best Value picks, gives up very little. AMD has discontinued B650, though, so if a B650 board costs as much as the comparable B850, our B850 picks are the better buy.

Do B650 motherboards support Ryzen 9000 out of the box?

Only if the board left the factory on new enough firmware. Ryzen 9000 needs a BIOS on AMD's AGESA 1.2.0.x line or later, and a board built earlier will power on but show nothing on screen. Every pick here can flash its BIOS from a USB stick with no CPU installed, so an old-firmware board is a ten-minute fix. Our 9850X3D BIOS guide has the steps and the firmware each vendor released.

Will a B650 board run a Ryzen 7 9800X3D or 9850X3D at full speed?

Yes. Both are 120 W chips, and the chipset does not limit CPU performance: the processor runs at the same clocks on B650, B850 and X870 when the board's power delivery keeps up. Every ATX pick here has 12 or more Vcore stages, which is plenty. The 9850X3D needs a newer BIOS than the first Ryzen 9000 chips, so flash before the first boot. The Mini-ITX pick works too, but watch its default 75 C thermal cap.

Does a PCIe 4.0 graphics slot slow down a new graphics card?

Barely. TechPowerUp measured an RTX 5090 at about 1% slower on PCIe 4.0 x16 than on PCIe 5.0 x16, averaged across 1080p, 1440p and 4K, and slower cards lose less. The bigger risk is the slot you use. The lower x16-length slot on an ATX B650 board runs at x4 from the chipset, and an RTX 5090 lost about 10% at 1440p on PCIe 4.0 x4. Keep the card in the top slot.

Do any B650 motherboards have USB4?

Not as a chipset feature. USB4 is required only on X870 and X870E boards, which add a dedicated controller for it. None of the five boards here has USB4. Three of them have a 20Gbps USB-C port on the rear, which covers fast external SSDs. If you need USB4 for a dock or a 40Gbps drive, look at X870 boards instead.

Can I use a PCIe 5.0 SSD on a B650 motherboard?

Yes, at full speed, if the board has a Gen5 M.2 slot. On B650 that slot is optional, so check the spec sheet: four of the five picks here have one, and the MSI Gaming Plus WiFi does not. A Gen5 drive in a Gen4 slot still works, at Gen4 speed. Use the Gen5 slot's heatsink, because these drives run hot under long transfers.
