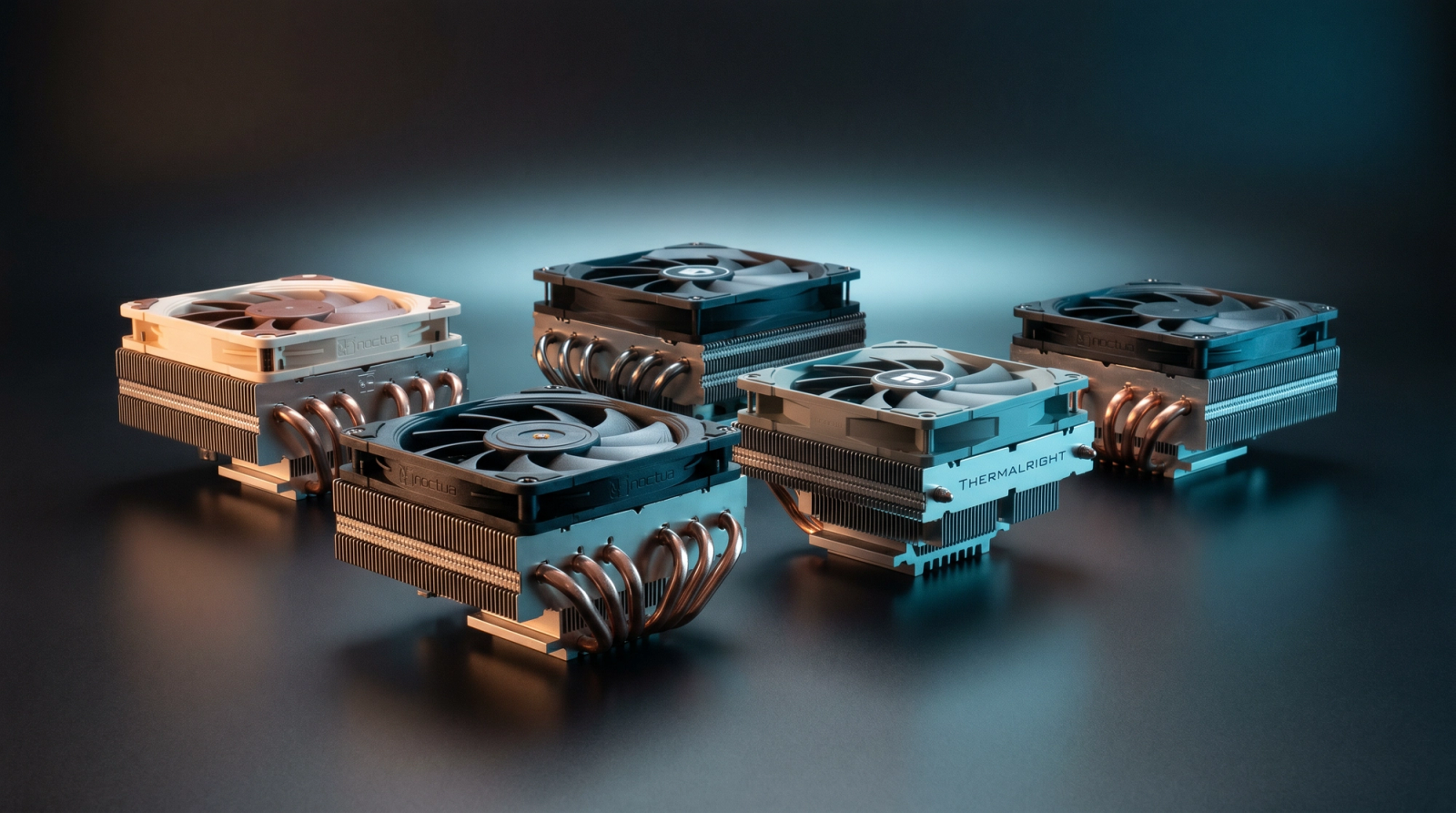

Best Low-Profile CPU Coolers 2026: Height Chart for Every SFF Case

Every ITX build eventually runs into the same wall: your case has a 58mm CPU cooler height limit and every roundup you find either ignores your specific case or lists coolers at 70mm that will not fit. This guide fixes that with a case-clearance table built for the cases people actually buy, then picks five coolers matched to the height tiers that table creates.

Your case clearance is not a soft guideline. It is the first filter on every cooler in this article.

Our top pick: Noctua NH-L12Sx77

The Noctua NH-L12Sx77 handles mainstream AM5 and LGA1851 chips cleanly, installs easily with Noctua's SecuFirm2 mounting, and fits the cases the majority of SFF builders actually own. For most SFF builders with at least 70mm of clearance, nothing else in this guide is worth considering first.

Quick picks

Case clearance chart

This is the table the SFF community keeps rebuilding in forum threads. These values come from manufacturer spec sheets and community build reports. A 3-5mm safety margin below the listed limit is the right working target.

The Fractal Terra caveat is worth calling out separately. The Terra's adjustable spine means the CPU cooler clearance changes depending on how you position the central plate. If you have your heart set on the NH-L12Sx77 in a Terra build, spine position 1 gives you the 77mm needed. If the GPU in your build requires a wider spine position, a 53mm cooler like the Thermalright AXP90-X53 is the safer choice. Per Fractal Design's own support documentation, clearance ranges from approximately 48mm to 77mm.

Specs at a glance

How we picked

Every cooler in this list was selected by asking the same two questions in order: does it fit your case, and does it handle your CPU's heat without throttling under a real gaming load?

Case clearance comes first. A 77mm cooler that performs brilliantly is useless in a 48mm case. The height chart above maps the clearance tiers; the picks below cover each tier with at least one option so you can filter to your case and then pick within what fits.

Thermal headroom is next. Low-profile coolers operate with a real TDP ceiling — you cannot stack six heatpipes into a 37mm fin stack and get the same heat transfer as a 165mm tower. A Ryzen 5 9600X at stock gaming sits around 65W. A Ryzen 7 9700X under sustained workload is a different story. An Arrow Lake i7 at default boost settings can spike past what 37mm and 47mm coolers handle cleanly. The TDP numbers in the specs table reflect practical gaming scenarios, not best-case synthetic benchmarks.

Both platforms are covered. AM5 and LGA1851 builders face identical case-clearance constraints. Three of the five picks support both platforms natively. The two Noctua L9-series picks are socket-specific — the right one depends entirely on whether you are on AMD or Intel. The NH-L9a-AM5 and the NH-L9i-17xx look nearly identical in product photos. They are not interchangeable. Buying the wrong socket variant means a return trip.

Best Overall: Noctua NH-L12Sx77

Specs

77mm height, 120mm NF-A12x15 slim PWM fan, six heatpipes, Intel LGA1851/LGA1700/LGA1200/LGA115x and AMD AM5/AM4 support, SecuFirm2 mounting, NT-H2 thermal compound included.

What it does well

The NH-L12Sx77 handles Ryzen 5 and Ryzen 7 AM5 chips and LGA1851 i5 and i7 configurations at stock without throttling during sustained gaming sessions. The NR200P at 155mm clearance is more than enough headroom for it. The Fractal Terra at spine position 1 (77mm) fits it exactly. Silverstone's Milo ML12 at 75mm fits it with a 2mm margin — enough, but worth verifying against your specific board's heatsink layout before buying.

Six heatpipes separate it from the four-pipe mid-tier options. Under sustained CPU load the extra pipes keep the die temperature lower and the fan RPM lower alongside it. Quieter operation at equivalent load is the tangible result — the 120mm slim fan at mid-RPM stays noticeably more subdued than any 92mm slim fan covering the same thermal load at higher speeds.

RAM clearance is a practical advantage. The fan sits above the fins rather than beside them, so virtually any DDR5 module height fits underneath without physical conflict. Builders who picked tall RGB DIMM kits sometimes discover too late that shorter side-fan coolers conflict with DIMM height. The L12Sx77 bypasses that entirely.

Installation uses SecuFirm2 across all supported sockets. Noctua's mounting hardware is the baseline the rest of the industry is judged against. No custom backplate sourcing, no standoff height guesswork, no compatibility gaps on recent AM5 or LGA1851 ITX boards.

What you give up

At 77mm, measure your case clearance before ordering and subtract 3-5mm as the working margin. The Fractal Terra requires spine position 1 to clear this cooler — at wider GPU positions the spine reduces CPU clearance below 77mm. The Dan A4-SFX at 48mm is not compatible.

The thermal ceiling is set in the right place for mainstream chips. A 9950X pulling 170W or more in sustained workloads is not the right match for any low-profile cooler at any height. That is a liquid cooling problem. If you are building a content creation rig in SFF, the best 280mm AIO coolers guide covers the right path for high-TDP chips.

The standard variant ships in Noctua's classic brown. The chromax.black version exists at a separate ASIN for builds where the color matters to the aesthetic.

Who it's for

SFF builder in an NR200P, Fractal Terra at spine position 1, Silverstone Milo ML12, or Louqe Raw S1 with Top Hat running an AM5 or LGA1851 mainstream chip at stock. Wants genuine quiet operation without routing AIO tubes.

Best Value: Thermalright AXP90-X53

Specs

53mm height, 92mm TL-9015 slim PWM fan, four heatpipes, AGHP 3.0 technology, Intel LGA1851/LGA1700/LGA1200/LGA115x and AMD AM5/AM4 support, 22.4 dB maximum noise, 2700 RPM maximum.

What it does well

The AXP90-X53 punches above its price class in the 47-60mm height tier. For a 9600X or a locked i5 running at 65W, it keeps temperatures in check at mid-RPM fan speeds without pressing toward Noctua pricing.

At 53mm it opens more cases than the 47mm options while staying safely under the 58mm limit of the Node 202 and Silverstone Milo ML12. It fits the FormD T1 v2 cleanly — 53mm against a 55mm working clearance after the recommended margin is applied.

Thermalright's AGHP technology addresses non-standard mounting orientations. In sandwich-layout cases where the motherboard is horizontal, conventional heatpipe coolers can lose efficiency as gravity pulls working fluid away from the evaporator. AGHP is designed to counter this. In a standard vertical tower orientation the benefit is marginal; in flat HTPC cases it is the relevant variable.

What you give up

Four heatpipes against the NH-L12Sx77's six means a smaller thermal budget. Under sustained workload a 9700X will run 8-10°C hotter on the AXP90-X53. In real gaming, the gap narrows because games rarely sustain full CPU TDP for more than a few seconds. In rendering or video encoding, the four-pipe ceiling arrives sooner.

The 92mm fan is louder at maximum RPM than a 120mm moving equivalent airflow. In a quiet room during a thermal peak, the difference is audible. For headphones-on gaming, it is not.

Thermalright's AXP90 lineup has accumulated multiple variants over time: original, Black, Full Copper, and revision-era listings. Buyers have landed on older listings that do not explicitly confirm LGA1851 (Arrow Lake) compatibility. The B0CY2J7RYF ASIN in this guide is the current AM5-native version. When browsing directly on Amazon, verify that the listing's compatibility table includes LGA1851 before purchasing.

Who it's for

Budget SFF builder in a Node 202, FormD T1, Fractal Terra at a wide spine position, or any case with 50-58mm clearance running a 65W-class CPU.

Best Premium: Noctua NH-L9a-AM5

Specs

37mm height, 92mm NF-A9x14 PWM fan, AMD AM5 and AM4 only, approximately 46W practical gaming TDP, custom SecuFirm2 AM5 mounting, NT-H1 thermal compound included, 100% RAM and PCIe slot clearance.

What it does well

The NH-L9a-AM5 fits cases that nothing else fits. At 37mm it clears the Dan A4-SFX's 48mm spec with more than 10mm to spare and slides into the Velka 3's strict 47mm limit cleanly. If your case clearance is under 50mm and you are on AMD, this is the cooler.

Noctua validates 100% RAM and PCIe compatibility for every socket-compatible motherboard. It pairs well with the best AM5 mini-ITX motherboards — the AM5-specific SecuFirm2 mount lands consistently across every board in that guide without compatibility surprises.

The NF-A9x14 is one of the quietest 92mm slim fans available. At the light loads this cooler sees during casual use, it runs near-inaudibly. Noctua's NA-FD1 fan duct kit, sold separately, channels case air directly into the cooler and can improve CPU temperatures by up to 5°C in enclosed HTPC cases with restricted airflow across the motherboard. For Node 202 and similar flat-chassis builds, the duct kit is worth adding to the purchase.

What you give up

The 46W practical TDP ceiling is a real constraint. A Ryzen 5 9600X at stock gaming sits around 65W in burst scenarios — the cooler handles this, but temperatures will reach the high 80s to low 90s Celsius under heavy sustained load. Builders running a 9700X at full stock power report similar ceiling behavior.

The 9800X3D's cache-sensitive gaming workloads sustain CPU activity at levels this cooler cannot manage without throttling. The best CPU coolers for the 9800X3D covers what the 9800X3D actually needs in SFF.

This cooler supports AMD only. The NH-L9i-17xx below is the direct Intel equivalent. Buying the AMD version for an Intel board is a return trip.

Who it's for

AMD SFF builder in the tightest sandwich cases — Dan A4-SFX, Velkase Velka 3, or any HTPC chassis with under 50mm clearance — running a Ryzen 5 9600X or lower-TDP AMD chip. The Noctua build quality and acoustic performance justify the price over budget alternatives at this height tier.

Best Budget: ID-Cooling IS-47-XT V2

Specs

47mm height, 92mm PWM fan, four heatpipes, Intel LGA1700/LGA1200/LGA115x and AMD AM5/AM4 native support, approximately 55W practical TDP, black anodized finish.

What it does well

The IS-47-XT V2 earns its position by fixing the socket-support gap in the original. The first generation required a separate bracket for AM5, which meant buyers had to source an accessory that was not always readily available. The V2 ships with native AM5 support in the box — no bracket hunting. That makes it the cleanest budget pick for builders who need both AMD and Intel coverage in a sub-50mm clearance case.

At 47mm it fits the Velka 3's strict limit and everything the NH-L9a-AM5 fits. The black anodized finish is rare at this price bracket; most budget low-profile coolers arrive as raw silver aluminum that clashes with the deliberate aesthetic choices SFF builders tend to make.

What you give up

The fan is louder at maximum RPM than any Noctua or Thermalright option in this guide. In a quiet listening environment at a thermal peak, it is noticeable. For headphones-on gaming or a desk with ambient noise, the difference disappears.

The 55W practical TDP ceiling is tighter than the AXP90-X53. Keep the chip at 65W or under — a 9700X at full stock power will push this cooler. Intel's and AMD's BIOS power limit settings can bring a higher-TDP chip into range, but that is a configuration step to make deliberately.

The V2 is a newer ASIN (B0FZGT88Z7) with fewer long-term reviews than the original. The core design is established, but the V2's native AM5 mount is recent enough that there is not yet a multi-year reliability record in SFF builds. Some buyers have noted edge machining variation at the base plate during initial installation — verify contact quality before the first boot. The original IS-47-XT (B0BLSCMXMG) does not natively support AM5. Both versions look identical in listing photos. Verify the V2 ASIN before purchasing.

Who it's for

Budget SFF builder who needs universal AMD and Intel support in a case with 47-50mm clearance and does not want to pay for Noctua or Thermalright pricing. A Ryzen 5 9600X or i5 class chip at 65W is the right pairing.

Editor's Pick (Intel): Noctua NH-L9i-17xx

Specs

37mm height, 92mm NF-A9x14 PWM fan, Intel LGA1700 and LGA1851 only, approximately 46W practical TDP, custom SecuFirm2 Intel mounting, NT-H1 thermal compound included, 100% RAM and PCIe clearance.

What it does well

Everything described for the NH-L9a-AM5 applies here, with one substitution: the socket. The NH-L9i-17xx is built around Intel's LGA1700 and LGA1851 mounting geometry. Noctua's SecuFirm2 for Intel is purpose-built to the socket, not an adapter or universal plate. The contact quality and installation reliability match the AMD version exactly.

LGA1851 (Arrow Lake) changed the heatspreader dimensions relative to LGA1700. Noctua validated the -17xx mount against Arrow Lake's geometry, so it installs cleanly on Arrow Lake ITX boards without additional kits. For an i5-125xx chip in a flat HTPC or sandwich case where only 37mm of clearance exists, this is the credible premium Intel option.

What you give up

AMD is not supported. If your build uses an AM5 or AM4 CPU, the NH-L9a-AM5 is the pick, not this one.

Arrow Lake i7 and i9 chips at default power settings boost above the 46W practical ceiling of this cooler. An i7 in a desktop system without deliberate power-limit configuration will throttle on this cooler during extended high-load scenarios. The right match is an i5-125xx or an i7 with a BIOS power limit set to 65W or below.

The standard variant is Noctua brown. The chromax.black version is ASIN B09HCHYMJM.

Who it's for

Intel Arrow Lake LGA1851 builder in an ultra-compact case with under 50mm clearance — a flat HTPC, Dan A4-SFX equivalent in Intel configuration, or any sandwich case near the 47-48mm limit — running an i5 or a deliberately power-limited i7.

Bottom line

If your case has 77mm or more of CPU cooler clearance, the Noctua NH-L12Sx77 is the right pick. It covers both AMD AM5 and Intel LGA1851, installs cleanly, and handles mainstream chips at stock without compromise.

If your case has 50-58mm of clearance, the Thermalright AXP90-X53 fits the space and costs significantly less than the Noctua.

If your case has under 50mm of clearance — Dan A4-SFX, Velka 3, or similar — socket determines the pick: AMD goes to the NH-L9a-AM5, Intel LGA1851 goes to the NH-L9i-17xx. Both are at 37mm, which fits every case that accepts any cooler at all.

Budget builders with 47-50mm clearance who need both platforms in one cooler: the ID-Cooling IS-47-XT V2.

Before ordering anything, subtract 3-5mm from your case's listed clearance as your actual working target. Spec sheets assume ideal conditions. The Fractal Terra with an adjustable spine is the clearest example: the clearance you get depends on where you set the spine for your GPU, not just what the product page says.
