240mm vs 360mm AIO: Which Size Do You Actually Need?

The 240mm versus 360mm question almost never comes down to the radiator. It comes down to your CPU. A 240mm AIO already cools every mainstream gaming chip with room to spare, so for a lot of builds the bigger radiator buys headroom you will never load.

Where the 360mm earns its price is on the hottest desktop parts, when you overclock, or when you want the build as quiet as physically possible. Here is how to match the size to your actual chip, what the temperature gap really looks like, and whether a 360 will even fit your case.

At a glance

Which size for your CPU

What a bigger radiator buys you

More radiator is more surface area to dump heat into the air. Same heat load, more area, and the coolant runs cooler or the fans spin slower to hold the same temperature. That is the whole mechanism. On a mainstream chip the gap stays small because the chip is not producing enough heat to stress either radiator.

The delta grows with wattage. Reviewer testing of the same cooler line at both sizes puts the 360mm around 3 to 5 degrees cooler than the 240mm on mid-range loads, widening to 5 to 8 degrees once you push a 200-watt-plus chip under a sustained all-core load. At the bottom of the range that gap is academic. At the top it is the difference between a chip that holds its boost and one that backs off.

Load temps on a Ryzen 7 9800X3D

Load temps on a Ryzen 9 9950X3D

On the 9800X3D both sizes are comfortable, and the four-degree gap is mostly noise headroom rather than a performance story. On the 9950X3D the picture flips. The 240mm is working hard and creeping toward the temperature where the chip starts protecting itself, while the 360mm still has slack.

Will it even fit your case?

Cooling is only half the decision. The other half is whether the radiator physically fits. A 360mm radiator needs 360mm of mounting rail plus room for the fans. Most modern mid-towers take a 360 in the front without complaint. The top is where it gets tight, because a 38mm radiator plus 25mm fans is over 60mm of stack that has to clear your RAM and the top of the motherboard. Check your case's radiator support list before you assume a 360 mounts up top.

Smaller cases are where the 360 falls out of contention. A lot of mATX and compact builds top out at 240mm or 280mm. If a 360 is a squeeze, a 280mm AIO is the honest middle option that splits the difference on cooling without the clearance fight.

Noise: the real reason most people size up

For most people the real reason to size up is not temperature. It is noise. Spread the same heat over a 360mm radiator and the fans can move the air they need at a lower RPM, which means a quieter machine at the same load. If you build with a closed headset on, that quiet buys you very little. If the PC sits on your desk an arm's length from your head, it can be worth the upgrade on its own.

One honest caveat on the Arctic line specifically: some samples of the 240mm have been reported to develop a faint pump whine at certain speeds, with reviewers measuring it as the louder of the two sizes. It is not universal, but it is worth knowing if silence is your priority, because that is exactly the buyer the 360mm is for.

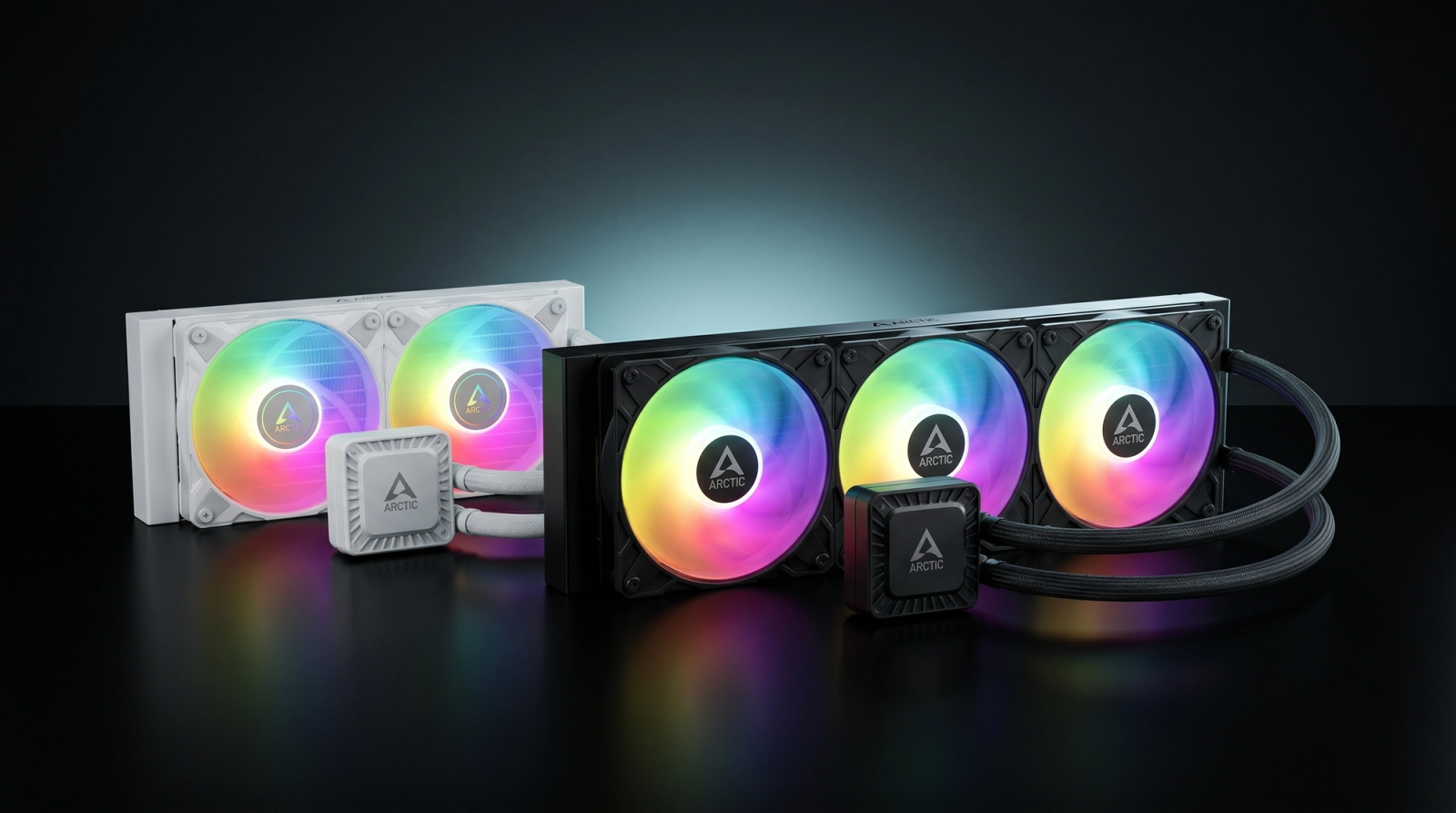

Arctic Liquid Freezer III 240

ARCTIC Liquid Freezer III 240 A-RGB - CPU AIO Water Cooler, Water Cooling PC, Intel & AMD, Efficient PWM-Controlled Pump, Fan: 200–2000 RPM, LGA1851 and LGA1700 Contact Frame - White

$55.20$69.99

Buy the Arctic Liquid Freezer III 240 on Amazon

Specs

What it does well

The Liquid Freezer III 240 is the size most builders should default to. Its 38mm-thick radiator holds more coolant than a typical slim 240, so it cools harder than its footprint suggests and stays composed on a 9800X3D or any Ryzen 5, Ryzen 7, Core i5, or Core i7. The integrated VRM fan is a genuinely useful extra that pushes air over the socket area, which matters on hot AM5 boards.

It also fits where the 360 cannot. Mid-towers, most mATX cases, and tight top mounts all take a 240 without a clearance puzzle, and you pay less for the privilege.

What you give up

Headroom. Put a 200-watt-plus chip on it under a sustained all-core workload and it runs warm, with the fans ramping loud to keep up. It is not the cooler for a 9950X3D or a Core Ultra 9 if you actually load all the cores for hours at a time.

There is no future-proofing here either. If a Ryzen 9 upgrade is on your horizon, buying the 240 now can mean buying cooling twice.

Who it's for

The Ryzen 5, Ryzen 7, or X3D builder in a mid-tower or mATX case who wants quiet, sufficient cooling and would rather put the saved money toward a faster GPU or a bigger SSD.

Arctic Liquid Freezer III 360

ARCTIC Liquid Freezer III Pro 360 A-RGB - AIO CPU Cooler, 3 x 120 mm Water Cooling, 38 mm Radiator, PWM Pump, VRM Fan, AMD AM5/AM4, Intel LGA1851/1700 Contact Frame - Black

$92.99$97.49

Buy the Arctic Liquid Freezer III 360 on Amazon

Specs

What it does well

The Liquid Freezer III 360 is the same cooler with 50 percent more radiator, and that extra area does two jobs. It keeps the hottest desktop chips, the 9950X3D and the Core Ultra 9 285K, in comfortable territory under sustained load, and on cooler chips it lets the fans loaf along quietly. If your goal is the quietest possible build or one cooler that survives two CPU generations, this is the size.

It is also the safer pick for overclocking, where the extra thermal slack translates directly into sustained boost rather than a chip that pulls back as it heats up.

What you give up

Money and clearance. It costs more than the 240, and it demands a case that genuinely supports a 360mm radiator, which rules out a lot of smaller builds. On a Ryzen 5 or a stock 9800X3D the extra radiator mostly buys lower noise, not lower temperatures you would ever notice.

Who it's for

The Ryzen 9 or Core Ultra 9 builder, the overclocker, the silence seeker, and anyone who wants to buy cooling once and not think about it through their next CPU.

Which one should you buy?

If you run a Ryzen 5, Ryzen 7, or a 9800X3D, get the 240mm. It cools your chip with margin to spare, it fits your case, and the money you save goes further as GPU or storage. That covers most gaming builds.

If you run a Ryzen 9 9950X3D, a Core Ultra 9 285K, or any chip that pulls past 200 watts under load, get the 360mm. The 240 can do it, but it will be hot and loud, and you bought a high-end CPU to run it hard.

If you overclock or plan to move to a hotter CPU within a couple of years, get the 360mm even on a chip the 240 could handle today. You are buying headroom on purpose.

If your priority is a near-silent machine on your desk, get the 360mm regardless of your CPU, since the bigger radiator is the cheapest path to low fan speeds. And if you are not committed to liquid at all, a strong air tower clears the same mainstream chips for less.

Bottom line

For most builders the answer is the 240mm. It cools every mainstream chip and the 9800X3D properly, it fits almost any case, and it leaves money on the table for the parts that change your frame rate. Size up to the 360mm when your CPU pulls real wattage, when you overclock, or when silence is the point.

Match the radiator to the chip, not to the case window, and you only buy this once.
